Product Overview

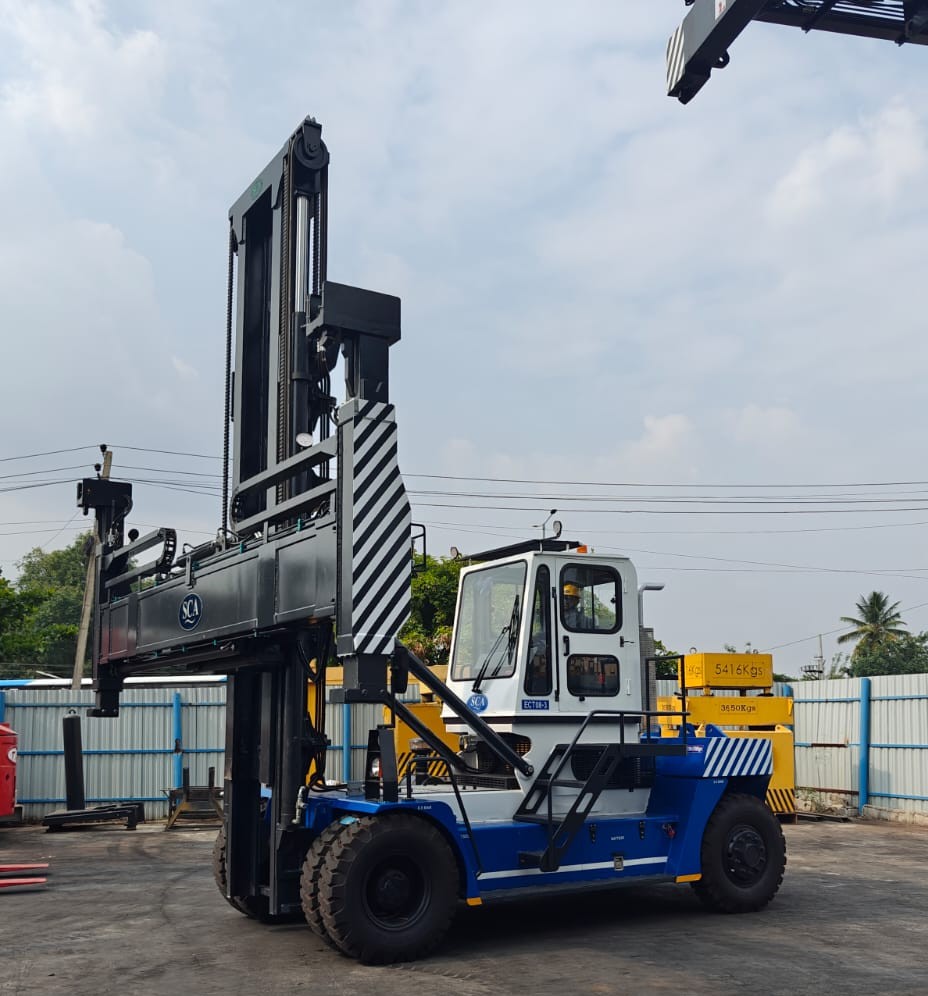

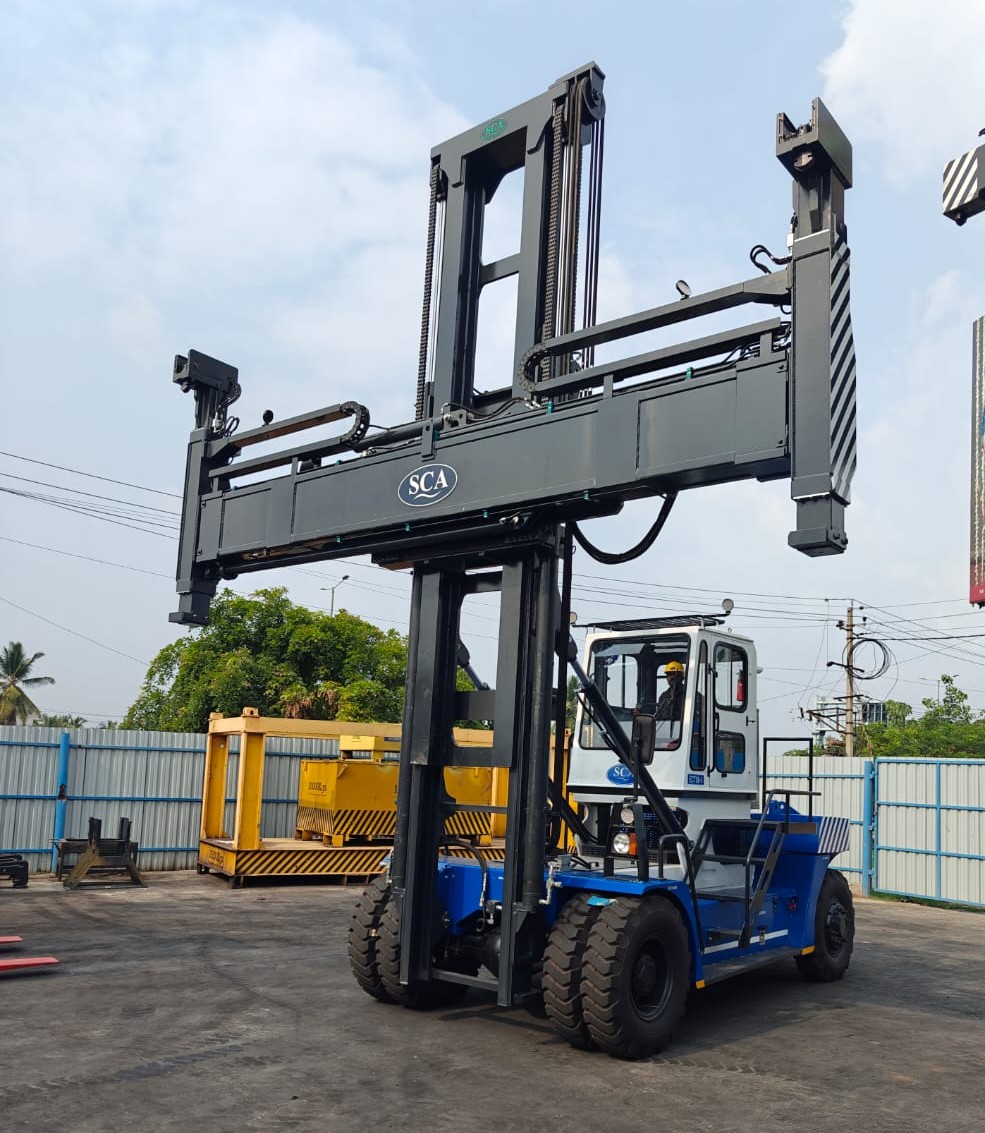

Designed to satisfy the needs of contemporary port and logistics operations, the SCA ECT 08-3H is a sturdy and dependable Empty Container Side-Lift Truck. This handler can effectively handle and move empty containers with a lifting capability of 8,000 kg (10,000 Kg), guaranteeing smooth operation in port terminals and container yards.
The above machine is made available at a comparatively low price without compromising on quality, making them a cost-effective solution for port, yard, and logistics operations.
Engine
SCA ECT 08-3H is powered by a modern Tier III - six cylinder Ashok Leyland engine that produces around - 133HP /475 nm torque), this engine delivers the power required for hard, lifting and handling jobs while remaining extremely fuel, efficient, and dependable.
This machine can also be powered by a Tier V/CE V(commercial emission-V), modern four cylinder Eicher – E 494 engine that produces 101kW (137HP /550 nm of torque), as an option.
Transmission
The Avtec transmission (HINDUSTAN GROUP) provides precise and seamless control over the movement of the machine with 2 forward and 2 reverse gears.
Drive Axle
Equipped with TATA make heavy duty drive axle with Differential and Hub reduction. Since the reduction is achieved in both differential and hub, the stress on the drive shaft and axle shaft are reduced significantly. It completely eliminates shaft breakage issues, faced in similar equipment offered by competitors.
Key Highlights
Option of CE V emission norm engine for reduced environmental impact.
I Channel used for mast manufacture in place of C channel — superior rigidity, strength and fatigue resistance.
Elevated fully enclosed all-weather cabin offers exceptional visibility during operations in all weather conditions.
Hub reduction in drive axle eliminates the risk of shaft breakage.
Robust, proven design with 100+ machines currently in service.
Technical Specifications
| Make | SCA |
| Model | ECT 08-3H |
| Lift Capacity / Load Centre | 8000 Kgs under the Spreader |
| Lift Height | 7.5 Meter (Suitable to Handle 3 High – 9.6') |
| Mast | Duplex, Full Visibility |
| Tilt (Forward / Reverse) | 5° / 10° with Low Mount Tilt Cylinders |
| Side Shift | + / − 250 mm |
| Engine Make | Ashok Leyland |
| Engine Model | H6ETIC3RU5 – BS III Engine |
| Engine Power | 133 HP @ 2300 RPM |
| Transmission Make | AVTEC |
| Transmission Model | TRT 2221 |
| Transmission Speeds | 2 Forward / 2 Reverse |
| Transmission Type | Power Shift with Torque Converter and Mechanical Gear Shift |
| Transmission Shifting | Mechanical Shifting |
| Drive Axle Make | TATA / EICHER |
| Drive Axle Model | 77043500112 / 440DH Ratio 6.428 RR (TRX) |
| Drive Axle Brakes | Dry Type Drum Brake |
| Operators Cabin |
High Mounted Regular Entry: Left Emergency Exit: Right |
| Counterweight | Single Piece, Removable Type |
| Tyres (Front) | 11.00 × 20, 16 PR (4 Nos.) |
| Tyres (Rear) | 11.00 × 20, 16 PR (2 Nos.) |
| Gross Vehicle Weight (Laden) | 32,120 Kgs |
| Gross Vehicle Weight (Unladen) | 24,120 Kgs |
| Colour Scheme (Chassis / CWT) | PU, Blue & White |
| Mast / Axles / Rims | PU, Dark Grey |
| Cabin | PU, Off White |
| Safety | Fire Extinguisher |
